Продукты дробильная установка Мобильная дробилка

Мобильная дробилка

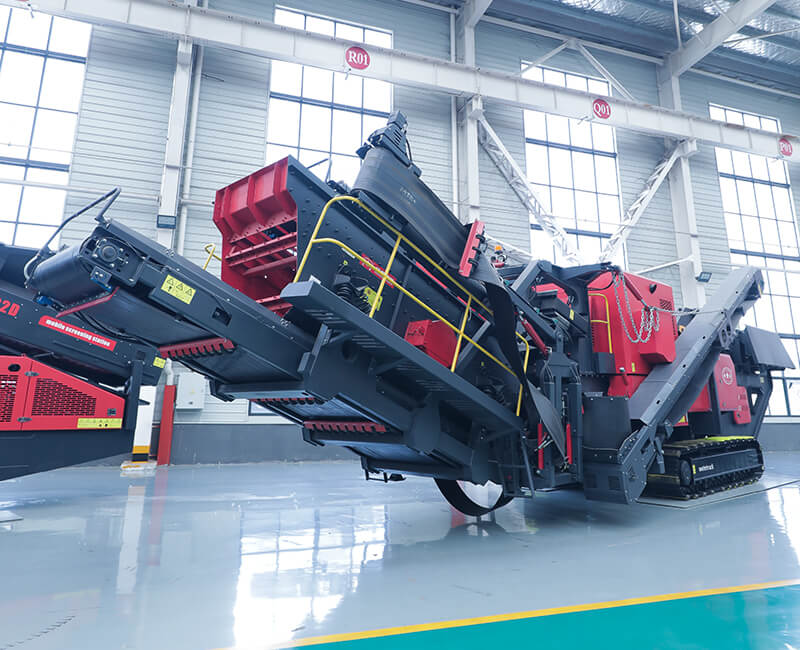

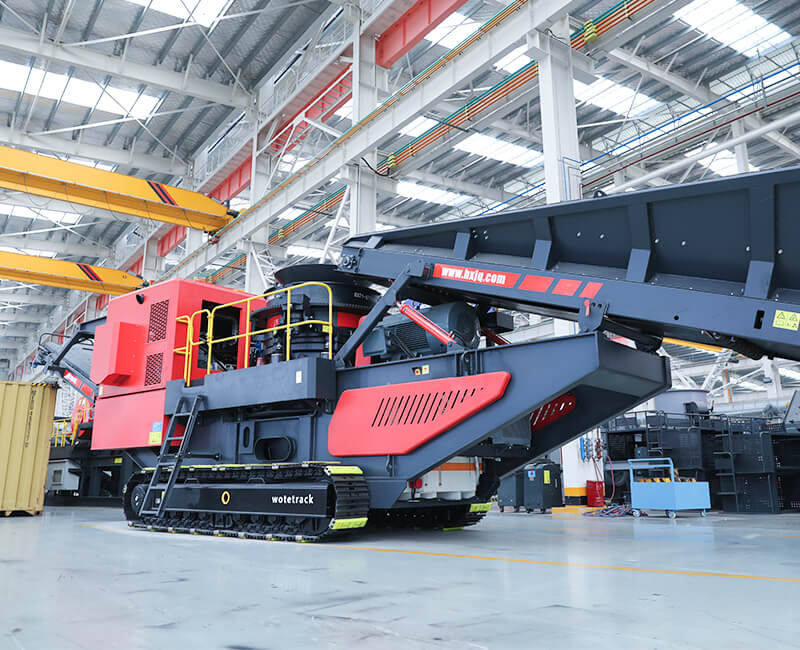

Изображение продукта реальный выстрел

Размер на входе: В зависимости от процесса
Производительность: В зависимости от процесса

Получить цитату

Email: sales-russian@sinoftm.com

Представление продукции

Гусеничная гидравлическая приводная дробильная установка является нашей компанией внедрение международной известной технологии компания горнорудного механизма , и в сочетании с реальной ситуации в стране, разработал мобильное дробильно-сортировочное оборудование. Машина применила приводную гусеницу с гидравлической системой, что обеспечвает плавный ход и может адаптироваться к различным сложным условиям на месте работы. Она широко применяется в таких областях, как добыча полезных ископаемых, добыча каменных, строительство автомагистралей (железных дорог) и мостов, удаление отходов городских строительств.

Мобильная дробилка область применения

Особенности продукта

Шасси принимает цельнометаллическую лодачную конструкцию, высокая прочность, большая алаптация к площдке операции.
Высокомощный мотор, сильная сила, безпасность и надежность.
С использованием известного бренда двигателя, реализация отличных характеристих энергетической системы, имеет низкий шум, низкие энергосебестоимость и др. Специфики.
В соответствии с требованиями заказчика, можно распределить дробильно-сортировочное оборудование всех уровней, оптимизационный дищайн всей машины,чтобы полностью гарантировать качество.
Может быть оснащен генераторным агрегатом для удовлетворения обычных оперативных потребностей в сложных ситуациях, таких как отсутствие и электричества или отключение эректричества, для обеспечения бесперебойного функционирования и уменьшения потерь

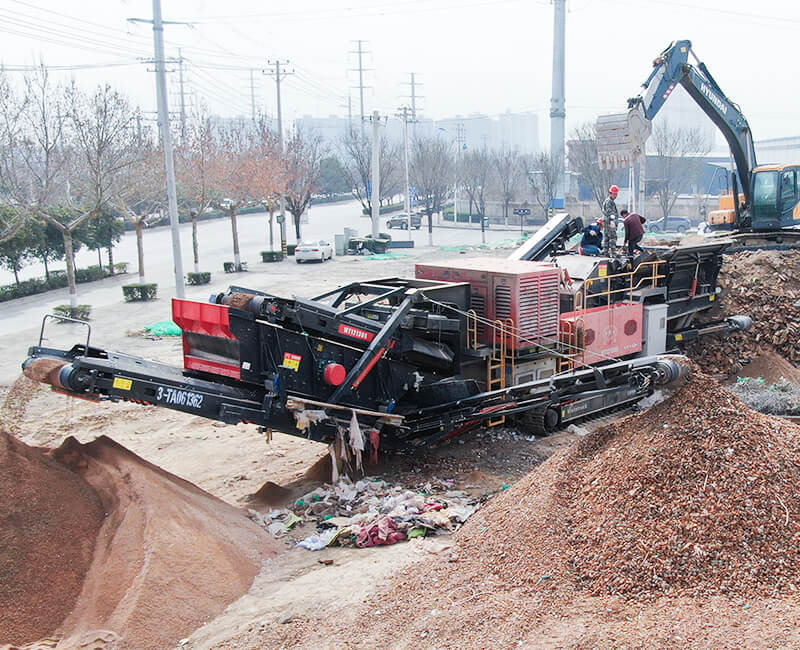

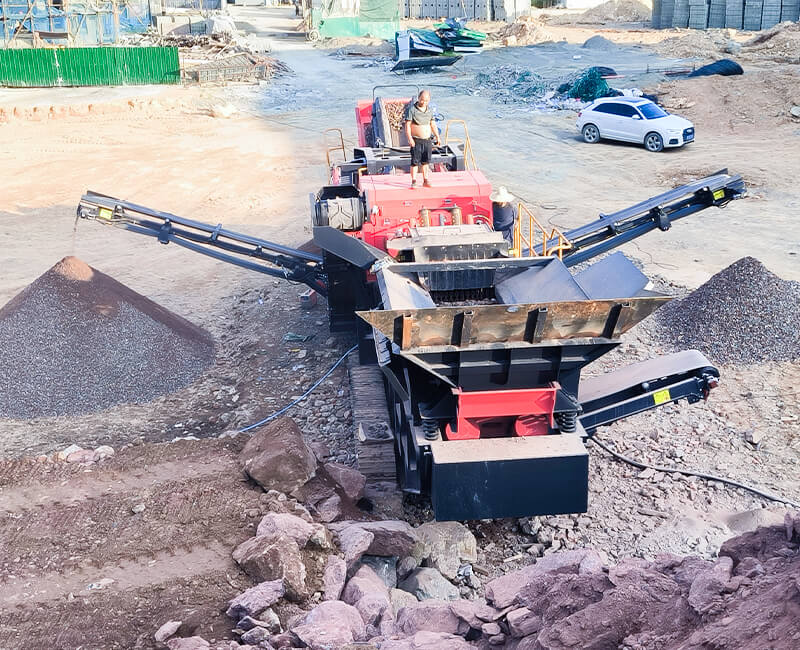

подвижная дробильная станция
подвижная дробильная станция
гусеничный конусный дробильный подвижный пункт
Нажмите на модель

Model		WT96	WT106	WT120
Dimensions of Transmission Devices	Length	14200mm	14900mm	15200mm
	Width	2900mm	3000mm	3200mm
	Height	3470mm	3600mm	3700mm
	Weight	38t	50t	65t
Feeder	Hopper Volume	5m³	5m³	6m³
	Loading Height	3900mm	4100mm	4300mm
	FeederModel	GZDT3895	GZDT1145	GZDT1245
Unearthed Belt Conveyors	Dimensions(Width×Length)	800×9000mm	1000×10000mm	1200×12000mm
Unearthed Belt Conveyors	Dumping Height	3100mm	3200mm	3400mm
Crusher	Model	CJ96	CJ106	CJ120
	Inlet Dimensions	930×580mm	1060×700mm	1200×870mm
	Max.Feeding Size	480mm	560mm	700mm
Main Belt Conveyor	Dimensions(Width×Length)	800×9000mm	1000×10000mm	1200×12000mm
Main Belt Conveyor	Dumping Height	3100mm	3200mm	3400mm
Iron Remover	Model	RCYQ-8	RCYQ-10	RCYQ-10
Diesel Engine	Power	96kw	106kw	132kw
Diesel Engine	Manufacturer	Carter Perkins	Carter Perkins	Carter Perkins
The Main Machine	Power	112.9kw	141.4kw	196.2kw
The Main Machine	Ways of Controlling	Wired/Wireless (optional)	Wired/Wireless (optional)	Wired/Wireless (optional)

Model WT96 and WT106

Model		WT96	WT106
Dimensions of Transmission Devices	Length	14200mm	15200mm
	Width	2900mm	3000mm
	Height	3470mm	3600mm
	Weight	38t	50t
Feeder	Hopper Volume	5m³	6m³
	Loading Height	3900mm	4100mm
	FeederModel	GZDT3895	GZDT1145
Unearthed Belt Conveyors	Dimensions(Width×Length)	800×9000mm	1200×12000mm
Unearthed Belt Conveyors	Dumping Height	3100mm	3200mm
Crusher	Model	CJ96	CJ120
	Inlet Dimensions	930×580mm	1060×700mm
	Max.Feeding Size	480mm	560mm
Main Belt Conveyor	Dimensions(Width×Length)	800×9000mm	1200×12000mm
Main Belt Conveyor	Dumping Height	3100mm	3200mm
Iron Remover	Model	RCYQ-8	RCYQ-10
Diesel Engine	Power	96kw	132kw
Diesel Engine	Manufacturer	Carter Perkins	Carter Perkins
The Main Machine	Power	112.9kw	196.2kw
The Main Machine	Ways of Controlling	Wired/Wireless (optional)	Wired/Wireless (optional)

Model WT120

Model		WT120
Dimensions of Transmission Devices	Length	15200mm
	Width	3200mm
	Height	3700mm
	Weight	65t
Feeder	Hopper Volume	6m³
	Loading Height	4300mm
	FeederModel	GZDT1245
Unearthed Belt Conveyors	Dimensions(Width×Length)	1200×12000mm
Unearthed Belt Conveyors	Dumping Height	3400mm
Crusher	Model	CJ120
	Inlet Dimensions	1200×870mm
	Max.Feeding Size	700mm
Main Belt Conveyor	Dimensions(Width×Length)	1200×12000mm
Main Belt Conveyor	Dumping Height	3400mm
Iron Remover	Model	RCYQ-10
Diesel Engine	Power	132kw
Diesel Engine	Manufacturer	Carter Perkins
The Main Machine	Power	196.2kw
The Main Machine	Ways of Controlling	Wired/Wireless (optional)

Model		WT110	WT110S	WT1213	WT1213S	WT1315
Dimensions of Transmission Devices	Length	14000mm	16000mm	15500mm	19000mm	17000mm
	Width	3000mm	3200mm	3200mm	3600mm	3200mm
	Height	3600mm	3600mm	3800mm	3800mm	3800mm
	Weight	40t	45t	53t	60t	65t
Feeder	Hopper Volume	3m³	3m³	5m³	5m³	5m³
Feeder	Loading Height	3900mm	4000mm	3900mm	4100mm	4000mm
Primary Screen	Power	5.2kw	5.2kw	6.12kw	6.12kw	6.12kw
Primary Screen	Sieve Dimensions	1040×924mm	1040×924mm	1140×924mm	1140×924mm	1240×930mm
Crusher	Model	CI1110M	CI1110M	CI1213M	CI1213M	CI1315M
	Inlet Dimensions	1020×860mm	1020×860mm	1320×900mm	1320×900mm	1540×900mm
	Max.Feeding Size	400mm	400mm	500mm	500mm	600mm
The Feeder at the Bottom	Hopper Volume	0.8m³	0.8m³	1m³	1m³	1.5m³
The Feeder at the Bottom	Power	5.2kw	5.2kw	5.2kw	5.2kw	6.12kw
Unearthed Belt Conveyors	Dimensions(Width×Length)	650×3500mm	650×3500mm	650×3500mm	650×3500mm	650×3500mm
Unearthed Belt Conveyors	Dumping Height	2200mm	2200mm	2200mm	2200mm	2400mm
Main Belt Conveyor	Dimensions(Width×Length)	1000×8500mm	1000×8500mm	1000×9900mm	1000×9900mm	1200×11000mm
Main Belt Conveyor	Dumping Height	3300mm	3300mm	3500mm	3500mm	3800mm
Secondary Screen	Power	○	6.12kw	○	6.12kw	○
Secondary Screen	Sieve Dimensions	○	1500×3600	○	1500×4200	○
Belt Conveyors at the Bottom	Dimensions(Width×Length)	○	1000×5800mm	○	1000×6200mm	○
Belt Conveyors at the Bottom	Dumping Height	○	2900mm	○	3000mm	○
Transferring Belt Conveyor	Dimensions(Width×Length)	○	650×2500mm	○	650×2800mm	○
Transferring Belt Conveyor	Dumping Height	○	1400mm	○	1400mm	○
Belt Conveyors for Discharging Material	Dimensions(Width×Length)	○	500×8000mm	○	500×9200mm	○
Belt Conveyors for Discharging Material	Dumping Height	○	4200mm	○	4500mm	○
Iron Remover	Model	RCYQ-10	RCYQ-10	RCYQ-10	RCYQ-10	RCYQ-10
Diesel Engine	Power	96kw	106kw	106kw	132kw	132kw
Diesel Engine	Manufacturer	Carter Perkins	Carter Perkins	Carter Perkins	Carter Perkins	Carter Perkins
The Main Machine	Power	253kw	274kw	304kw	324.4kw	366kw
The Main Machine	Ways of Controlling	Wired/Wireless (optional)	Wired/Wireless (optional)	Wired/Wireless (optional)	Wired/Wireless (optional)	Wired/Wireless (optional)

Model WT110 and WT110S

Model		WT110	WT110S
Dimensions of Transmission Devices	Length	14000mm	17000mm
	Width	3000mm	3200mm
	Height	3600mm	3600mm
	Weight	40t	45t
Feeder	Hopper Volume	3m³	5m³
Feeder	Loading Height	3900mm	4000mm
Primary Screen	Power	5.2kw	6.12kw
Primary Screen	Sieve Dimensions	1040×924mm	1040×924mm
Crusher	Model	CI1110M	CI1315M
	Inlet Dimensions	1020×860mm	1020×860mm
	Max.Feeding Size	400mm	400mm
The Feeder at the Bottom	Hopper Volume	0.8m³	1.5m³
The Feeder at the Bottom	Power	5.2kw	5.2kw
Unearthed Belt Conveyors	Dimensions(Width×Length)	650×3500mm	650×3500mm
Unearthed Belt Conveyors	Dumping Height	2200mm	2200mm
Main Belt Conveyor	Dimensions(Width×Length)	1000×8500mm	1200×11000mm
Main Belt Conveyor	Dumping Height	3300mm	3300mm
Secondary Screen	Power	○	○
Secondary Screen	Sieve Dimensions	○	1500×3600
Belt Conveyors at the Bottom	Dimensions(Width×Length)	○	○
Belt Conveyors at the Bottom	Dumping Height	○	2900mm
Transferring Belt Conveyor	Dimensions(Width×Length)	○	○
Transferring Belt Conveyor	Dumping Height	○	1400mm
Belt Conveyors for Discharging Material	Dimensions(Width×Length)	○	○
Belt Conveyors for Discharging Material	Dumping Height	○	4200mm
Iron Remover	Model	RCYQ-10	RCYQ-10
Diesel Engine	Power	96kw	132kw
Diesel Engine	Manufacturer	Carter Perkins	Carter Perkins
The Main Machine	Power	253kw	366kw
The Main Machine	Ways of Controlling	Wired/Wireless (optional)	Wired/Wireless (optional)

Model WT1213 and WT1213S

Model		WT1213	WT1213S
Dimensions of Transmission Devices	Length	15500mm	17000mm
	Width	3200mm	3600mm
	Height	3800mm	3800mm
	Weight	53t	60t
Feeder	Hopper Volume	5m³	5m³
Feeder	Loading Height	3900mm	4100mm
Primary Screen	Power	6.12kw	6.12kw
Primary Screen	Sieve Dimensions	1140×924mm	1140×924mm
Crusher	Model	CI1213M	CI1315M
	Inlet Dimensions	1320×900mm	1320×900mm
	Max.Feeding Size	500mm	500mm
The Feeder at the Bottom	Hopper Volume	1m³	1.5m³
The Feeder at the Bottom	Power	5.2kw	5.2kw
Unearthed Belt Conveyors	Dimensions(Width×Length)	650×3500mm	650×3500mm
Unearthed Belt Conveyors	Dumping Height	2200mm	2200mm
Main Belt Conveyor	Dimensions(Width×Length)	1000×9900mm	1200×11000mm
Main Belt Conveyor	Dumping Height	3500mm	3500mm
Secondary Screen	Power	○	○
Secondary Screen	Sieve Dimensions	○	1500×4200
Belt Conveyors at the Bottom	Dimensions(Width×Length)	○	○
Belt Conveyors at the Bottom	Dumping Height	○	3000mm
Transferring Belt Conveyor	Dimensions(Width×Length)	○	○
Transferring Belt Conveyor	Dumping Height	○	1400mm
Belt Conveyors for Discharging Material	Dimensions(Width×Length)	○	○
Belt Conveyors for Discharging Material	Dumping Height	○	4500mm
Iron Remover	Model	RCYQ-10	RCYQ-10
Diesel Engine	Power	106kw	132kw
Diesel Engine	Manufacturer	Carter Perkins	Carter Perkins
The Main Machine	Power	304kw	366kw
The Main Machine	Ways of Controlling	Wired/Wireless (optional)	Wired/Wireless (optional)

Model WT1315

Model		WT1315
Dimensions of Transmission Devices	Length	17000mm
	Width	3200mm
	Height	3800mm
	Weight	65t
Feeder	Hopper Volume	5m³
Feeder	Loading Height	4000mm
Primary Screen	Power	6.12kw
Primary Screen	Sieve Dimensions	1240×930mm
Crusher	Model	CI1315M
	Inlet Dimensions	1540×900mm
	Max.Feeding Size	600mm
The Feeder at the Bottom	Hopper Volume	1.5m³
The Feeder at the Bottom	Power	6.12kw
Unearthed Belt Conveyors	Dimensions(Width×Length)	650×3500mm
Unearthed Belt Conveyors	Dumping Height	2400mm
Main Belt Conveyor	Dimensions(Width×Length)	1200×11000mm
Main Belt Conveyor	Dumping Height	3800mm
Secondary Screen	Power	○
Secondary Screen	Sieve Dimensions	○
Belt Conveyors at the Bottom	Dimensions(Width×Length)	○
Belt Conveyors at the Bottom	Dumping Height	○
Transferring Belt Conveyor	Dimensions(Width×Length)	○
Transferring Belt Conveyor	Dumping Height	○
Belt Conveyors for Discharging Material	Dimensions(Width×Length)	○
Belt Conveyors for Discharging Material	Dumping Height	○
Iron Remover	Model	RCYQ-10
Diesel Engine	Power	132kw
Diesel Engine	Manufacturer	Carter Perkins
The Main Machine	Power	366kw
The Main Machine	Ways of Controlling	Wired/Wireless (optional)

Model		WT160SC	WT250SC	WT300HPM	WT400HPM
Dimensions of Transmission Devices	Length	16800mm	19000mm	19000mm	19500mm
	Width	3500mm	3600mm	3900mm	3900mm
	Height	3700mm	3800mm	3800mm	3800mm
	Weight	50t	60t	55t	65t
Belt Conveyor	Hopper Volume	3m³	3m³	3m³	3m³
	Loading Height	2600m	2600m	2600m	2800m
	Loading Width	1900mm	1900mm	1900mm	1900mm
	Dimensions(Width×Length)	1000×6300mm	1000×6300mm	1000×6300mm	1200×6500mm
Crusher	Model	SC160	SC250	HP300	HP400
	Inlet Dimensions	75-360mm	75-450mm	60-200mm	68-280mm
	Max.Feeding Size	360mm	450mm	200mm	280mm
	Min. Discharging Size	8-25mm	8-35mm	8-45mm	8-51mm
Main Belt Conveyor	Dimensions(Width×Length)	1000×9000mm	1000×10000mm	1000×10000mm	1000×11000mm
Main Belt Conveyor	Dumping Height	3100mm	3490mm	3490mm	3690mm
Secondary Screen	Dumping Height	4200mm	4200mm	4400mm	4400mm
	Model	HX1536	HX1536	HX1536	HX1536
	Sieve Dimensions	1500×3600mm	1500×3600mm	1500×3600mm	1500×3600mm
Belt Conveyors at the Bottom	Dimensions(Width×Length)	1000×5600mm	1000×5600mm	1000×5600mm	1000×6500mm
Belt Conveyors at the Bottom	Dumping Height	3020mm	3020mm	3020mm	3300mm
Belt Conveyors to the Sieve	Dimensions(Width×Length)	650×2100mm	650×2100mm	650×2100mm	650×2100mm
Belt Conveyors to the Sieve	Dumping Height	1370mm	1370mm	1370mm	1370mm
Belt Conveyors for Discharging Material	Dimensions(Width×Length)	650×10000mm	650×10000mm	650×11000mm	650×11000mm
Belt Conveyors for Discharging Material	Dumping Height	4200mm	4200mm	4400mm	4400mm
Diesel Engine	Power	96kw	132kw	106kw	132kw
Diesel Engine	Manufacturer	Carter Perkins	Carter Perkins	Carter Perkins	Carter Perkins
The Main Machine	Power	207.12kw	297.12kw	267.12kw	362.12kw
The Main Machine	Ways of Controlling	Wired/Wireless (optional)	Wired/Wireless (optional)	Wired/Wireless (optional)	Wired/Wireless (optional)

Model WT160SC and WT250SC

Model		WT160SC	WT250SC
Dimensions of Transmission Devices	Length	16800mm	19500mm
	Width	3500mm	3600mm
	Height	3700mm	3800mm
	Weight	50t	60t
Belt Conveyor	Hopper Volume	3m³	3m³
	Loading Height	2600m	2600m
	Loading Width	1900mm	1900mm
	Dimensions(Width×Length)	1000×6300mm	1000×6300mm
Crusher	Model	SC160	HP400
	Inlet Dimensions	75-360mm	75-450mm
	Max.Feeding Size	360mm	450mm
	Min. Discharging Size	8-25mm	8-35mm
Main Belt Conveyor	Dimensions(Width×Length)	1000×9000mm	1000×11000mm
Main Belt Conveyor	Dumping Height	3100mm	3490mm
Secondary Screen	Dumping Height	4200mm	4400mm
	Model	HX1536	HX1536
	Sieve Dimensions	1500×3600mm	1500×3600mm
Belt Conveyors at the Bottom	Dimensions(Width×Length)	1000×5600mm	1000×6500mm
Belt Conveyors at the Bottom	Dumping Height	3020mm	3020mm
Belt Conveyors to the Sieve	Dimensions(Width×Length)	650×2100mm	650×2100mm
Belt Conveyors to the Sieve	Dumping Height	1370mm	1370mm
Belt Conveyors for Discharging Material	Dimensions(Width×Length)	650×10000mm	650×10000mm
Belt Conveyors for Discharging Material	Dumping Height	4200mm	4200mm
Diesel Engine	Power	96kw	132kw
Diesel Engine	Manufacturer	Carter Perkins	Carter Perkins
The Main Machine	Power	207.12kw	362.12kw
The Main Machine	Ways of Controlling	Wired/Wireless (optional)	Wired/Wireless (optional)

Model WT300HPM and WT400HPM

Model		WT300HPM	WT400HPM
Dimensions of Transmission Devices	Length	19000mm	19500mm
	Width	3900mm	3900mm
	Height	3800mm	3800mm
	Weight	55t	65t
Belt Conveyor	Hopper Volume	3m³	3m³
	Loading Height	2600m	2800m
	Loading Width	1900mm	1900mm
	Dimensions(Width×Length)	1000×6300mm	1200×6500mm
Crusher	Model	HP300	HP400
	Inlet Dimensions	60-200mm	68-280mm
	Max.Feeding Size	200mm	280mm
	Min. Discharging Size	8-45mm	8-51mm
Main Belt Conveyor	Dimensions(Width×Length)	1000×10000mm	1000×11000mm
Main Belt Conveyor	Dumping Height	3490mm	3690mm
Secondary Screen	Dumping Height	4400mm	4400mm
	Model	HX1536	HX1536
	Sieve Dimensions	1500×3600mm	1500×3600mm
Belt Conveyors at the Bottom	Dimensions(Width×Length)	1000×5600mm	1000×6500mm
Belt Conveyors at the Bottom	Dumping Height	3020mm	3300mm
Belt Conveyors to the Sieve	Dimensions(Width×Length)	650×2100mm	650×2100mm
Belt Conveyors to the Sieve	Dumping Height	1370mm	1370mm
Belt Conveyors for Discharging Material	Dimensions(Width×Length)	650×11000mm	650×11000mm
Belt Conveyors for Discharging Material	Dumping Height	4400mm	4400mm
Diesel Engine	Power	106kw	132kw
Diesel Engine	Manufacturer	Carter Perkins	Carter Perkins
The Main Machine	Power	267.12kw	362.12kw
The Main Machine	Ways of Controlling	Wired/Wireless (optional)	Wired/Wireless (optional)

Мобильная дробилка

Представление продукции

Особенности продукта

О компании

Нужна дополнительная информация о наших продуктах и цене?Просто свяжитесь с нами, мы ждем вас!
